3 phase electirc Motors for TOP Cycloid pump

3 phase electirc Motors for TOP Cycloid pump 3 phase electirc Motors for TOP Cycloid pump 3 phase electirc Motors for TOP Cycloid pump

Product name:3 phase electirc Motors for TOP Cycloid pump

Item:

Details:

3 phase electirc Motors for TOP Cycloid pump

Model Number:TOP motor + lubrication oil pump

Frequency:50/60Hz

Output Power:0.18 kw

Phase:Three-phase

Certification:CCC,CE

AC Voltage:220/380V

Place of Origin:China (Mainland)

Efficiency:IE 3

POLES:4P

Power:1/4hp

Flange size:TBD

shaft diameter:12mm

mounting holes distance:TBD

parallel key size:11x4mm

Weight:10KG


Product Description

3phase electirc Motors for TOP Cycloid pump
Lubrication pump special useTOP Motors

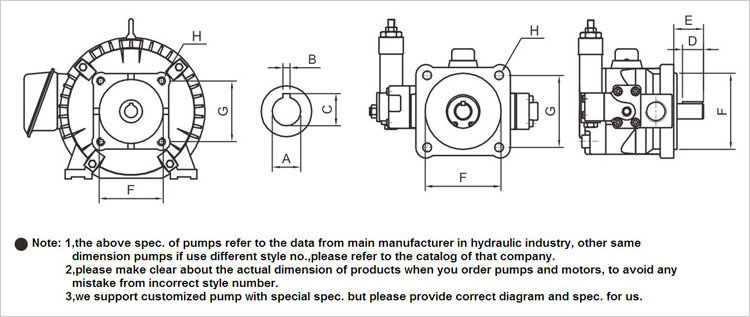

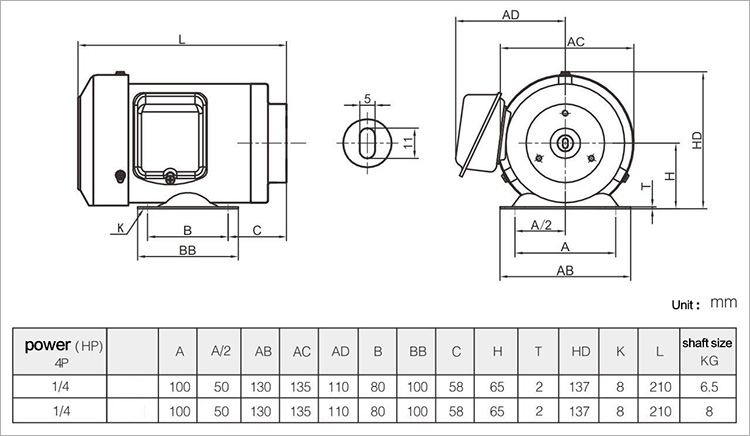

Thefollowing drawing are the installation dimension.

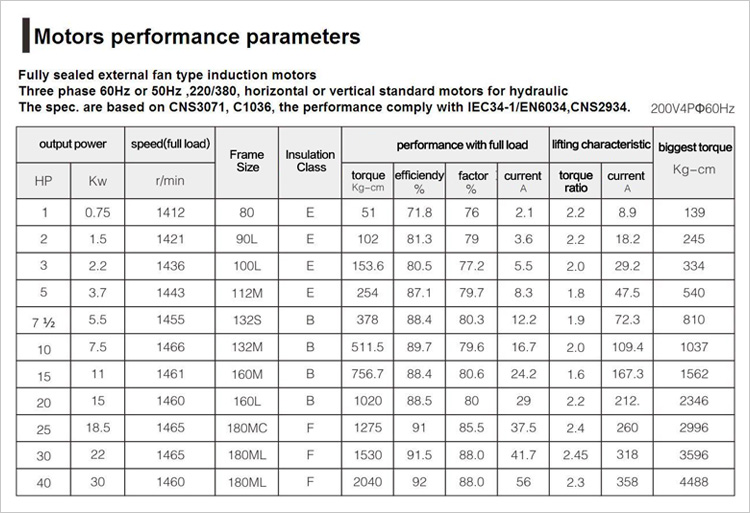

Thefollowing spec. sheet are the mounting dimension,such as flange size,shaftdiameter,etc.




Our Services
Warrantyperiod:  ONE YEAR
1,Withinone week after receipt of the goods, if customer use the products in correctmethod,and find any problem of performance or  construction with obviousevidence,we will be responsible for replacement or other discussing solutionbetween us.
2,Butif customer using method are not correct, or customer disassemble our productsprivately,we will not  responsible  for any problem or defectivepoints of products.
3,If you meet any questions of installation or debugging, please inquiry usanytime, our Engineer will provide technical support in time, or we will helpyou to resolve the technical failure through online video.
4,Any damage from transportion, we will slove the problem according to theresponsibility standard of INCOTERMS.
