A2F axial piston pump, A2F63R2P3 A2F80R2Z3 A2F107R2Z3

A2F axial piston pump, A2F63R2P3 A2F80R2Z3  A2F107R2Z3

Product name:A2F axial piston pump, A2F63R2P3 A2F80R2Z3 A2F107R2Z3

Item:

Details:

A2F axial piston pump, A2F63R2P3 A2F80R2Z3  A2F107R2Z3

Parameter:
A2F
12
L
2
P
1

A2F= Fixed displacement Pump / Motor
55 =  Displacement (Vgmin ~Vgmax)
           9.4 ml/r         10
           11.6 ml/r       12
           22.7 ml/r       23
           28.1 ml/r       28
           44.3 ml/r       45
           54.8 ml/r       55
           63.0 ml/r       63
           80.0 ml/r       80
           107 ml/r       107
           125 ml/r       125
           160 ml/r       160
           200 ml/r       200
           225 ml/r       225
           250 ml/r       250
           355 ml/r       355
           500 ml/r       500


    R= Direction of rotation
          Clockwise           R
          Anti-clockwise     L
          Alternation           W

     2= Series
          Series: size 10~160        1,2,3,4
          Series: size 200~500      5

     P= Shaft end
           Keyed shaft GB1096-79        P
           Splined shaft DIN 5480          Z
           Splined shaf GB3478.1-83    S

     1= Rear cover                               1~6

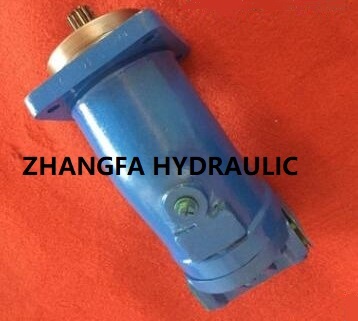

A2F piston pump features a proven spherical disc with high performance rotating components with automatic centering, low circumferential speed and high efficiency. Durable ball and roller bearings promote long service life. The drive shaft can bear radial load. ISO mounting flanges, consistent from specification 55 for constant duty pumps/motors and variable duty motors.

This company product guarantees, the price preferential benefit, the variety is complete, presently mainly sells to each place, the logistics direct.

Axial A2F piston pump model A2F63R1Z2 working pressure 35MPa professional distribution Beijing huade hydraulic pump, hydraulic valve. Rexroth axial piston pump/motor. Please consult our company for specific specifications and technical parameters. Low a2f inclined axis type axial piston pump/motor: Fixed for open and closed loop model example: a2f 55 r 2 p 1 a2f - quantitative motor displacement: 10, 12, 23, 28, 45, 55, 63, 80, 63, 80, 160, 200, 250, 355, 500, low variable a4vso swashplate axial piston pump: used for open loop model example: a4vs o 125 Dr / 10 rvpa11 a4vs - o - variable swash plate design pump, open circuit displacement: 40, 71, 125, 180, 250, 500, low quantitative a4fo swashplate axial piston pump: used for open loop model example: a4f o125r2p3 a4f - o - quantitative swash plate design pump, open circuit of displacement: 40, 71, 125, 180, 250, 500, a senior a6v inclined axis type axial piston variable motor: used to open and closed loop model example: a6v ha22fz2 a6v 80-80 - variable displacement motor: 28, 55, 80, 107, 160, 225, 500, a senior a7v inclined axis type axial piston variable pump: used for open loop model example: a7v55lv1lzfoo a7v - axial piston variable displacement pump: 40, 55, 58, 20, 28, 80, 78, 107, 78, 78, 250, 355, 500, the company also sells the Shanghai joint design, quality hydraulic valve and hydraulic accessories, oil filter, pipe joint and so on, welcome your enquiry.
