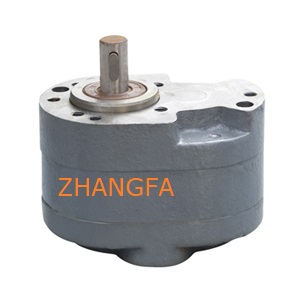

Gear pump CB series CB-10, CB-B16, CB-B6, CB-B4, CB-B2.5

Product name：Gear pump CB series CB-10, CB-B16, CB-B6, CB-B4, CB-B2.5

Item：

Details：

Gear pump CB series CB-10, CB-B16, CB-B6, CB-B4, CB-B2.5

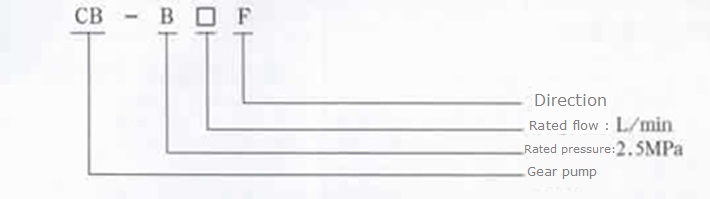

How to order:

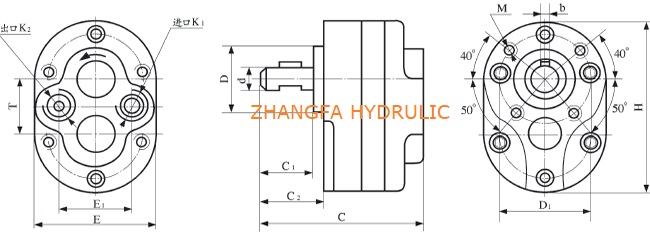

CB-B gear pump drawing size:

CB-B gear pump technical parameters:

Model	Rated flow L/min	Rated pressure mPa	Rated speed r/min	Volumetric efficiency ηv%	Total efficiency ηbdt%	Pressure pluctuation mPa	The noise value db	Motor Power w	Weoight: g
CB-B2.5	2.5	2.5	1450	≤70	≤63	±0.20	62～65	0.37	2.4
CB-B4	4			≤80	≤72			0.37	2.8
CB-B6	6			≤80	≤72			0.55	3.2
CB-B10	10			≤90	≤81			0.55	3.5
CB-B16	16						67～70	1.1	5.2
CB-B20	20							1.1	5.4
CB-B25	25							1.5	5.5
CB-B32	32			≤94	≤85			1.5	6.0
CB-B40	40						74～77	2.2	10.5
CB-B50	50							2.2	11.0
CB-B63	63							3	11.8
CB-B80	80						78～80	4	17.6
CB-B100	100			≤95	≤86			4	18.7
CB-B125	125			≤95	≤86			5.5	19.5

CB-B Gear pump technical specifications:

Model	C	E	H	C₁	C₂	D	D₁	d	E₁	T	b	M	K₁	K₂
CB-B2.5	79	66	96	25	30	a35	a50	a12	35	30	4	M6	Z³/₈"	Z³/₈"
CB-B4	82
CB-B6	86
CB-B10	94
CB-B16	107	90	132	30	35	a50	a65	a6	50	42	5	M8	Z³/₄"	Z³/₄"
CB-B20	111
CB-B25	115
CB-B32	121
CB-B40	132	102	154	35	40	a55	a80	a22	55	52	6	M8	Z1"	Z³/₄"
CB-B50	138
CB-B63	144
CB-B80	158	121	186	45	50	a70	a95	a30	65	65	8	M8	Z¹/₄"	Z1"

Gear pump CB-B2.5, gear pump CB-B4, gear pump CB-B6, gear pump CB-B10,
Gear pump CB-B16, gear pump CB-B20, gear pump CB-B25, gear pump CB-B32
Gear pump CB-B40, gear pump CB-B50, gear pump CB-B63, gear pump CB-B80
