Quick Details

Placeof Origin:

Guangdong,China (Mainland)

Brand Name:

ZF HYDRAULIC

Model Number:

VP30 variable vane pump

Theory:

Centrifugal Pump

Structure:

Single-stagePump

Usage:

Oil

Power:

Hydraulic

Standardor Nonstandard:

Standard

Fuel:

hydraulic

Pressure:

LowPressure

Application:

Hydraulicunit

pressurerange:

50--70bar (kgf/cm2)

displacement:

30L/min

shaftkey:

parallelkey shaft

shaftdiameter:

19.05mm

flangesize::

95.02mm

parallelkey spec.:

25mmlength, 4.76mm width

sauctionport diameter:

3/4"

deliveryport diameter:

1/2"

drainport diameter:

1/4"

weight:

9 kg

Supply Ability

SupplyAbility:

10000Piece/Pieces per Month

Packaging & Delivery

PackagingDetails

packone pump in one plastic bag ,then put it into one thick carton, then heap upthese cartons on the plastic pallet.

Port

SHENZHEN

Product Description

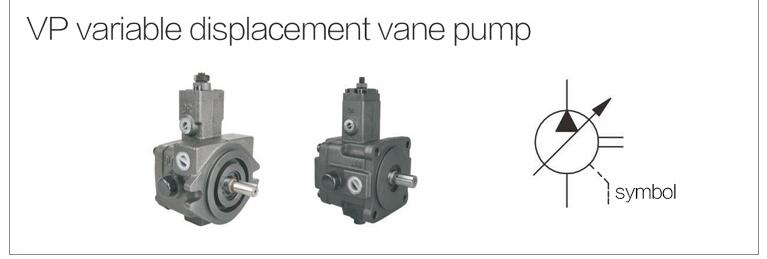

variable vane pump

Characteristic:

1, use precision machiningtechnology, can automaticly adjust displacement and complement under settingpressure. decrease the loss of load power ,high efficiency , low temperature ,energy saving.

2, low noise, response promptly, highefficiency and steady operation.

3, simple structure, simpleoperation, easy to maintain.

4, include adjusting screw, canadjust the displacement and pressure randomly, widely apply for lathe machineand show making machine,etc.

5, long working life, steadystructure, small volume, can connect with motor directly, save space,durability and so on.

Our Services

Warrantyperiod:  ONE YEAR

1,Withinone week after receipt of the goods, if customer use the products in correctmethod,and find any problem of performance or  construction with obviousevidence,we will be responsible for replacement or other discussing solutionbetween us.

2,Butif customer using method are not correct, or customer disassemble our productsprivately,we will not  responsible  for any problem or defectivepoints of products.

3,If you meet any questions of installation or debugging, please inquiry usanytime, our Engineer will provide technical support in time, or we will helpyou to resolve the technical failure through online video.

4,Any damage from transportion, we will slove the problem according to theresponsibility standard of INCOTERMS.
