Products

V series piston pumps V23A3L10X

Product name：V series piston pumps V23A3L10X

Item：

Details：

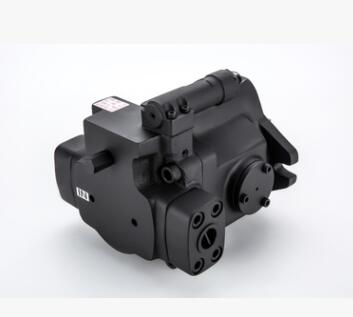

V series piston pumps V23A3L10X

How to order:

Model	Max. operated pressure (kgf/cm2)	Displacement (L/min)	Flow (L/min)		Pressure adjusting range (kgf/cm2)	Speed		Weight (kg) Flange Type
			Flow (L/min)		Pressure adjusting range (kgf/cm2)	Max	Min
			1500rpm	1800rpm	1: 8-70 2: 15-140 3: 20-210 4: 20-250	1800	500
V15	250	15.0	22.5	27.0				11.5
V18	250	17.8	26.7	32.0				11.5
V23	250	23.0	34.5	41.4				20.0
V38	250	37.8	56.7	68.0				23.0
V50	140	51.5	77.2	92.7				50.0
V70	140	69.7	104.5	125.4				55.0

Daikin V series of V8,V15,V18,V23,V38,V50,V70 hydraulic variable displacement axial piston pump

1. Completely interchangeable with original
2. High efficiency, low noise and long service life

3. Variable displacement axial piston pumps

4. Suit for a variety kinds of fluid medium

5. Small size and light weight

6. Widely used in machine tools, plastic molding machine, engineering machinery, maritime and boat and industrial machinery etc.

7. Size series: V8, V15, V23, V38, V50, V70

8. Very Competitive price

9. 1 year of warranty

10. Daikin V series other piston pump models:

Daikin piston pump V8A1RX-20, Japan piston pump V8A1LX-20, V8A1L-20, V15A1RY-95, V15A1RX-95, piston pump factory V15A2RX-95, V15A3RX-95, V15A1R-95, V15A2R-95, V15A3R-95, V15A1L-95, V15A2L-95, Japan Daikin piston pump V15A3L-95, V15A1LX-9, V15A2LX-95, V15A3LX-95, V15A3R-95RC, V15A3RX-95RC, V23A1RX-30, V23A2RX-30, V23A3RX-30, V23A4RX-30, Japan Daikin piston pump agents V23A4RX-30RC, V23A1R-30, V23A2R-30, V23A3R-30, V23A4R-30, V23A4R-30RC, V38A1RX-95, piston pump wholesale V38A2RX-95, V38A3RX-95, V38A4RX-95, V38A1R-95, China piston pump V38A2R-95, V38A3R-95, V38A4R-95, V38A4RX-95RC, axial piston pump V38A4R-95RC, V50A1RX-20,V50A2RX-20,V50A3RX-20. piston pump for sale V50A1R-20,V50A2R-20,V50A3R-20
V70A1RX-60,V70A2RX-60,V70A3RX-60. high quality piston pump V70A1R-60,V70A2R-60,V70A3R-60

Feature follow:
1. Combining special internal designs and strict engineering disciplines has reduced noise level to new lows in whole pressure zones.
2. Depending on variety of application needs multiple optional unique control methods are available. It does not only reduce a number of unnecessary hoses, pipes and control valves but also increase efficiency and save horsepower and cost.
3. Less capacity reservoirs can be selected and applied because of performances of low pressure loss and less head generation.
4. Wide application ranges: it is very suitable for machine tools, plastic injection molding machines, forging machines and other industrial machines etc.
5. Mounting flanges are made to SAE A or B 2-bolt (V15, 18, 23, 38 types) and SAE-C 2 & 4-bolt (V50, V70 types).

Cautions for selecting hydraulic oil:

* In case hydraulic pressure is under 6.9MPa (70 krf/cm2), use hydraulic oil which is corresponding to ISO VG32-60 in viscosity grade or wear resisting hydraulic oil.

* In case hydraulic pressure is over 6.9MPa (70kgf//cm2), use wear resisting hydraulic oil which is corresponding to ISO VG32-68 in viscosity grade.
