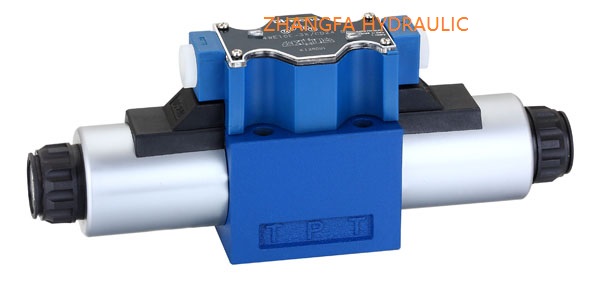

Rexroth 4WE10 series solenoid directional valve 4WE10E3XCD24LL

Rexroth 4WE10 series solenoid directional valve 4WE10E3XCD24LL

Product name:Rexroth 4WE10 series solenoid directional valve 4WE10E3XCD24LL

Item:

Details:

Rexroth 4WE10 series solenoid directional valve 4WE10E3XCD24LL

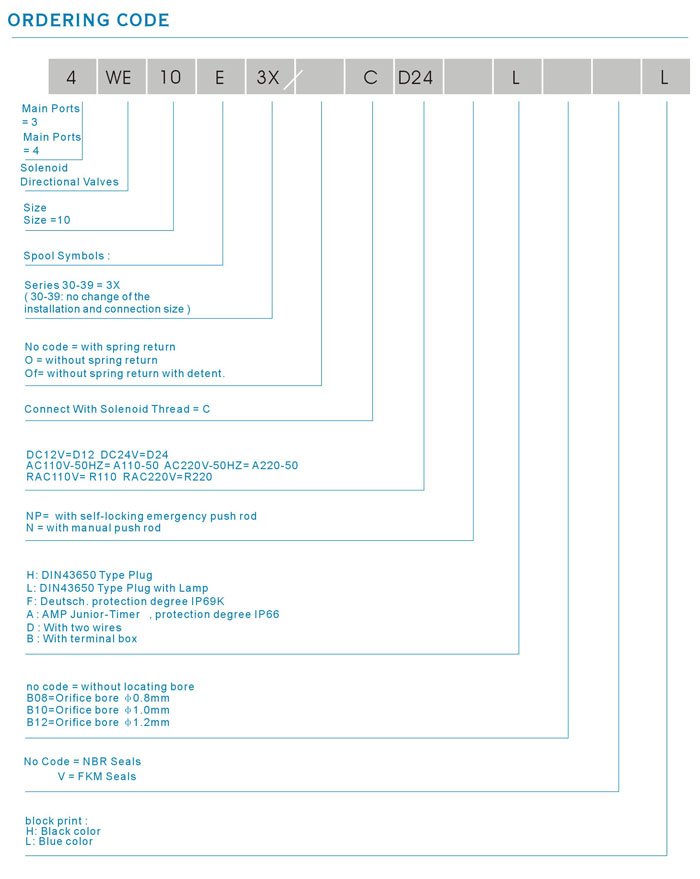

How to order:

Technical data:

General data

Mounting position

anywhere

Operating temperature

-30~+50nitrile   rubber seal

-20~+50fluorous   rubber seal

weight

Single solenoid valve   kg

4.3(DC); 3.5(AC)

Double solenoid valve  kg

6.0(DC); 4.9(AC)



Hydraulic Data

Maximum operating voltage  fluid port PAB  Mpa

31.5

Hydraulic fluid port    T          Mpa

21DC):16AC)

When working pressure exceeds the   allowable pressure, valves with the sign bit A,B must use T as oil drain   port

Maximum flow rate             1/min

120

Flux areas             when in   the median

Type Q

mm2

11A/B→T);   10.3(P→A/B)



Type W

mm2

2.5(A/B→T)



Type Q

mm2

2.5(A/B→T)



Hydraulic oil

1、suitable for nitrile rubber and fluoro rubber seal

2、Fluoro seal only

Mineral oilHL,HLP)   by DIN51 524

Rapid biological solution oil by VDMA24   568

HETG 1);

HEPG 2;HEES 3

The oil temperature range

-30~+80nitrile   rubber seal



-20~+80rubber   seal

Viscosity range               mm2/s



2.8-500

Oil cleanliness

The highest oil pollution level by   NASI1639 Class 9

recommend minimum filter filtration   precision β10≧75

Hydraulic data

Voltage category

DC

AC50HZ

Supply voltage        V

12244896110220

110    220

Allowable voltage tolerance

+10~ 15

+10~ 15

Power consumption   W

36

-

Holding current      A

-

0.42220V

Starting current      A

-

1.40220V

Working system   ED

100

100

Reversing time         ms

145~160

15~25

Resetting time       ms

120~130

20~30

Switching time   times/h

≦15000

≦7200

Protection class by DIN 40050

IP65AMP:IP66)

Deutsch:IP69K)

Maximum coil temperature

135℃(class B

180℃(Class H

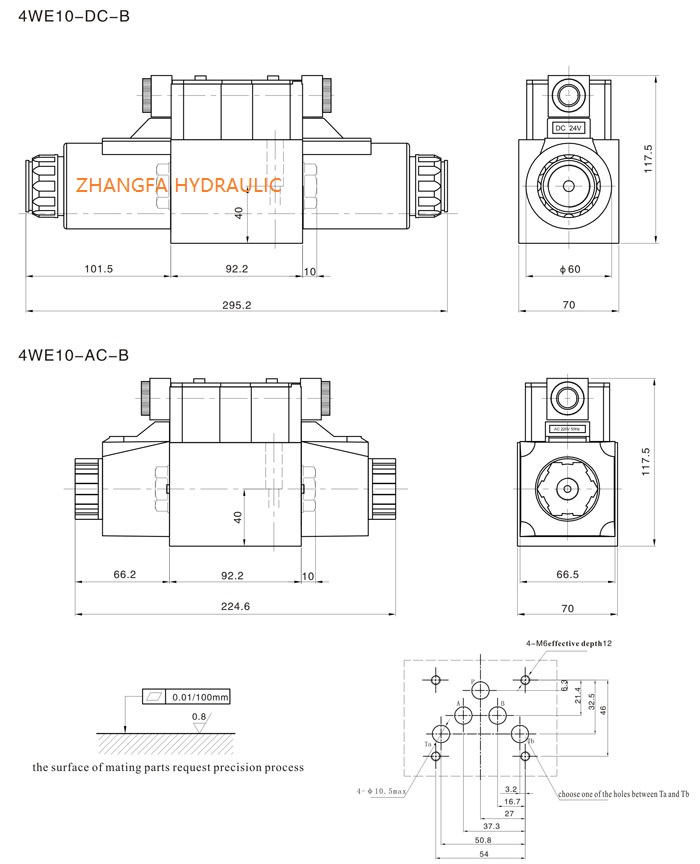

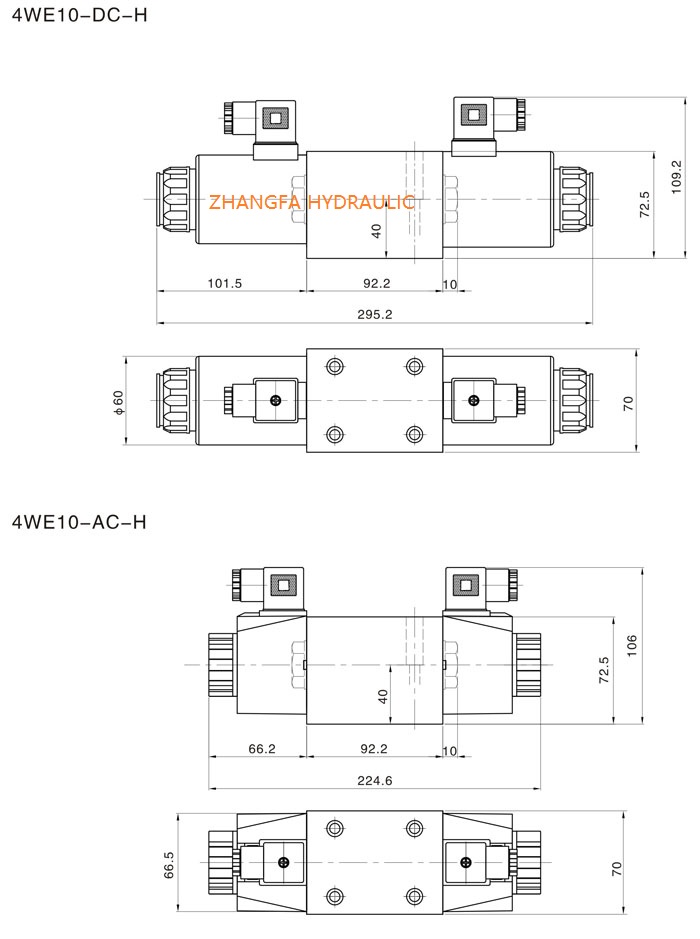

Dimension:


This series Rexroth solenoid directional valve other models:
Rexroth solenoid valve directional valve 4WE10E3XOCD24LL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24LL
Rexroth solenoid valve directional valve 4WE10E3XOCD12LL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12LL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50LL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50LL
Rexroth solenoid valve directional valve 4WE10E3XOCR110LL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220LL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NLL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NLL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NLL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NLL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NLL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NLL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NLL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NLL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NPLL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NPLL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NPLL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NPLL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NPLL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NPLL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NPLL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NPLL

-------------
Rexroth solenoid valve directional valve 4WE10E3XOCD24HL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24HL
Rexroth solenoid valve directional valve 4WE10E3XOCD12HL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12HL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50HL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50HL
Rexroth solenoid valve directional valve 4WE10E3XOCR110HL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220HL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NHL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NHL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NHL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NHL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NHL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NHL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NHL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NHL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NPHL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NPHL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NPHL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NPHL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NPHL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NPHL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NPHL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NPHL
----
Rexroth solenoid valve directional valve 4WE10E3XOCD24FL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24FL
Rexroth solenoid valve directional valve 4WE10E3XOCD12FL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12FL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50FL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50FL
Rexroth solenoid valve directional valve 4WE10E3XOCR110FL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220FL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NFL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NFL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NFL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NFL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NFL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NFL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NFL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NFL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NPFL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NPFL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NPFL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NPFL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NPFL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NPFL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NPFL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NPFL
---------
Rexroth solenoid valve directional valve 4WE10E3XOCD24AL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24AL
Rexroth solenoid valve directional valve 4WE10E3XOCD12AL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12AL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50AL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50AL
Rexroth solenoid valve directional valve 4WE10E3XOCR110AL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220AL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NAL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NAL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NAL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NAL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NAL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NAL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NAL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NAL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NPAL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NPAL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NPAL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NPAL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NPAL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NPAL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NPAL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NPAL
-------------

Rexroth solenoid valve directional valve 4WE10E3XOCD24DL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24DL
Rexroth solenoid valve directional valve 4WE10E3XOCD12DL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12DL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50DL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50DL
Rexroth solenoid valve directional valve 4WE10E3XOCR110DL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220DL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NDL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NDL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NDL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NDL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NDL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NDL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NDL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NDL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NPDL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NPDL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NPDL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NPDL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NPDL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NPDL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NPDL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NPDL
---------

Rexroth solenoid valve directional valve 4WE10E3XOCD24BL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24BL
Rexroth solenoid valve directional valve 4WE10E3XOCD12BL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12BL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50BL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50BL
Rexroth solenoid valve directional valve 4WE10E3XOCR110BL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220BL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NBL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NBL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NBL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NBL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NBL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NBL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NBL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NBL

Rexroth solenoid valve directional valve 4WE10E3XOCD24NPBL
Rexroth solenoid valve directional valve 4WE10E3XOfCD24NPBL
Rexroth solenoid valve directional valve 4WE10E3XOCD12NPBL
Rexroth solenoid valve directional valve 4WE10E3XOfCD12NPBL
Rexroth solenoid valve directional valve 4WE10E3XOCA110-50NPBL
Rexroth solenoid valve directional valve 4WE10E3XOfCA220-50NPBL
Rexroth solenoid valve directional valve 4WE10E3XOCR110NPBL
Rexroth solenoid valve directional valve 4WE10E3XOfCR220NPBL

Bosch-rexroth is a German manufacturer specializing in the production of hydraulic components, the main production of various hydraulic pumps, hydraulic motors, control valves, electro-hydraulic control systems and gear boxes. The products are widely used in hydraulic excavator, excavator loader, loader, bulldozer, crane, drilling machine, agricultural machinery and forestry machinery.

REXROTH series hydraulic components: one-way valve, direction valve, overflow valve, pressure reducing valve, flow control valve, two-way cartridge valve, proportional valve, servo valve, gear pump, vane pump, plunger pump, hydraulic motor and pump valve components......

REXROTH REXROTH 4WEH series electro-hydraulic directional valve

←[Previous:] [Next:]→

Related Products :
BDF2-240 Multi-way control valve ZHANGFA made

BDF2-240 Multi-way control valve ZHANGFA made
Rexroth 4WE4 series solenoid directional valve 4WE4E61S24HS

Rexroth 4WE4 series solenoid directional valve 4WE4E61S24HS
Rexroth 4WE6 series solenoid directional valve 4WE6E6XED24NLL

Rexroth 4WE6 series solenoid directional valve 4WE6E6XED24NLL
DG4V type single coil solenoid directional valve DG4V-3-2A

DG4V type single coil solenoid directional valve DG4V-3-2A
DG-01, DT-01 Remote Control Relief Valves

DG-01, DT-01 Remote Control Relief Valves
Marine manual directional valve FDM-04

Marine manual directional valve FDM-04
HNC brand proportional electro-hydraulic pressure control valve EDG-01-H

HNC brand proportional electro-hydraulic pressure control valve EDG-01-H
BDF3-170 Multi-way control valve China made

BDF3-170 Multi-way control valve China made

online service

Skype: zfhydraulic
