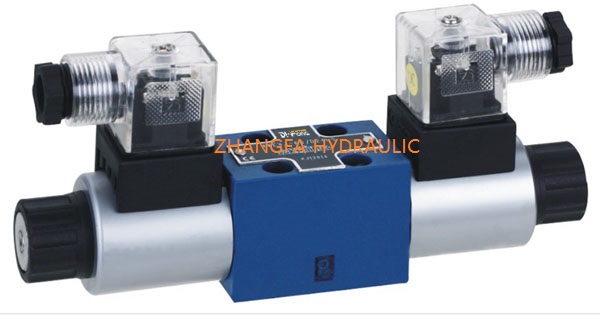

Rexroth 4WE4 series solenoid directional valve 4WE4E61S24HS

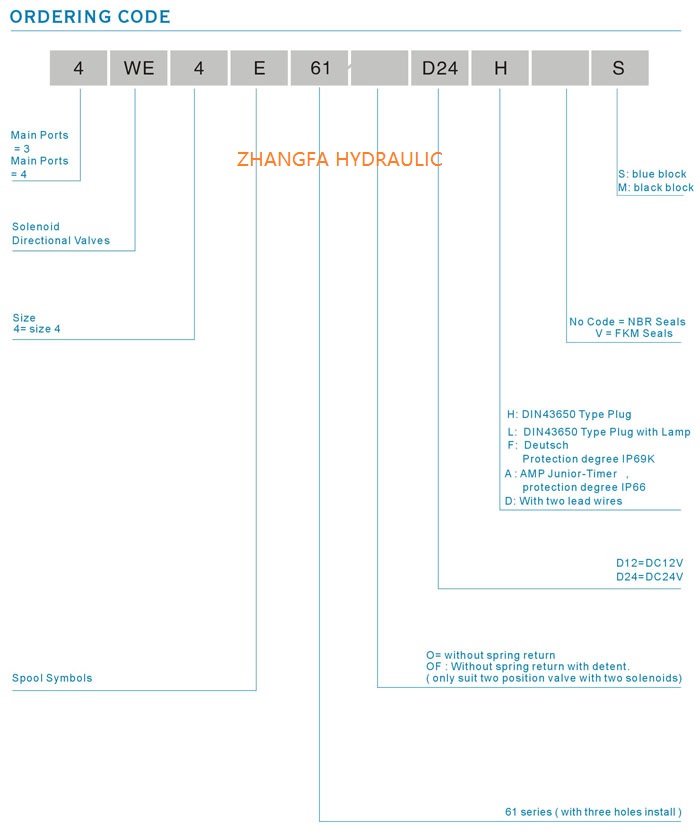

How to order:

Technical data:

General Data



The total weight of solenoid （with two solenoids）	㎏	0.89
The total weight of solenoid （with one solenoids）	㎏	0.72
Installation site		Optional position
Operating temperature	℃	-20~+50(adopt NBR seal ring )





Hydraulic Data



Maximum working oil pressure P、A and B	MP a	31.5
The highest oil pressure T cavity can bear	MP a	18
Maximum flow	1/min	20
Liquid medium		Mineral hydraulic oil, Phosphate hydraulic oil
The oil temperature range	℃	-20~+80
The oil cleanliness		ISO4572:β10≥75NAS1638：Class 9
The oil viscosity		ISO-VG32（5420）cst





Electric Data



Voltage category		DC、RAC(coil with a rectifier component)
Working system	ED	100％
Allowed voltage fluctuation range	％	-10~+10
The reserving and reset time	ms	On50…90 off40…80（do not include RA type）
Maximum reversing rate	Hz	3
Coil insulation class		H
The maximum operating temperature coil allowed	℃	180
Coil weight	㎏	0.215
voltage	V	12	24	48	110	R110	R220
Power types		DC	DC	DC	DC	AC	AC
Power rate	Hz	--	--	--	--	50/60	50/60
Power consumption	W	26	26	26	26	29	29
Coil resistance（20℃）	ohm	2.18	1.10	0.50	0.26	0.33	0.17
Operating current（20℃）	A	5.5	22	89	413	89	413

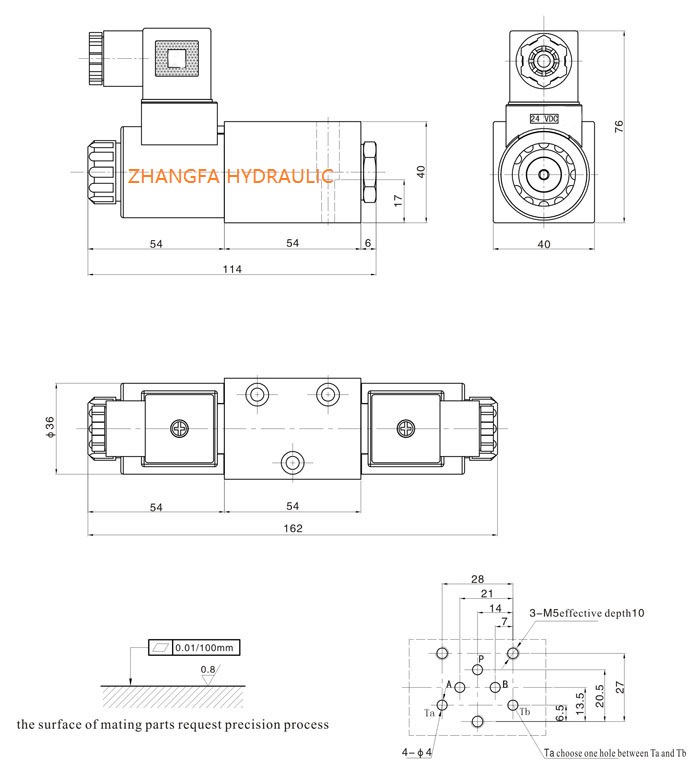

Dimension:
