Single Vane pump VP-SF-08-D

Single Vane pump VP-SF-08-D Single Vane pump VP-SF-08-D

Product name:Single Vane pump VP-SF-08-D

Item:

Details:

Single Vane pump VP-SF-08-D

Quick Details

Type:

variable vane pump

Model Number:

VP-SF-8-D(VP-8-FA3)

BrandName:

ZF HYDRAULIC

Placeof Origin:

Guangdong,China (Mainland)

pressure range:

50--70bar (kgf/cm2)

displacement:

8L/min

shaftkey:

parallelkey or spline shaft

shaftdiameter:

12.70mm or 15.875mm

flangesize::

82.55mm

parallelkey spec.:

25mmlength, 3.18mm width

sauctionport diameter:

1/2"

deliveryport diameter:

3/8"

drainport diameter:

1/4"

weight:

5 kg

Supply Ability

SupplyAbility:

10000Piece/Pieces per Month

Packaging & Delivery

PackagingDetails

plasticbag pack pumps,then put into thick carton, then heap up these cartons on theplastic pallet.

Port

SHENZHEN

variable displacement vane pump

Characteristic:



1, use precision machiningtechnology, can automaticly adjust displacement and complement under settingpressure. decrease the loss of load power ,high efficiency , low temperature ,energy saving.

2, low noise, response promptly, highefficiency and steady operation.

3, simple structure, simpleoperation, easy to maintain.

4, include adjusting screw, canadjust the displacement and pressure randomly, widely apply for lathe machineand show making machine,etc.

5, long working life, steadystructure, small volume, can connect with motor directly, save space,durability and so on.

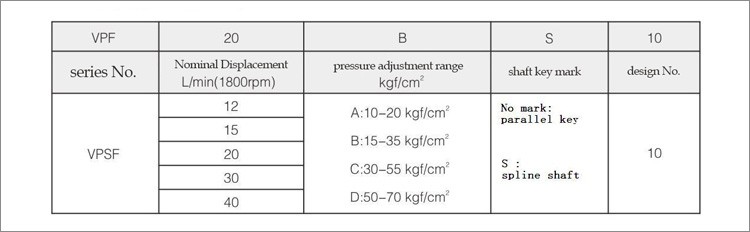

VP type single pump model description:



Allowed rotatingspeed:minimum:800r/min,maxmum:1800r/min

Drain oil pipe: drain oil pipe mustbe installed under the oil level. Pressure should be setted as <0.05MPa;Pipe length should be shorter than 1M, don’t mix with other oil return pipe.

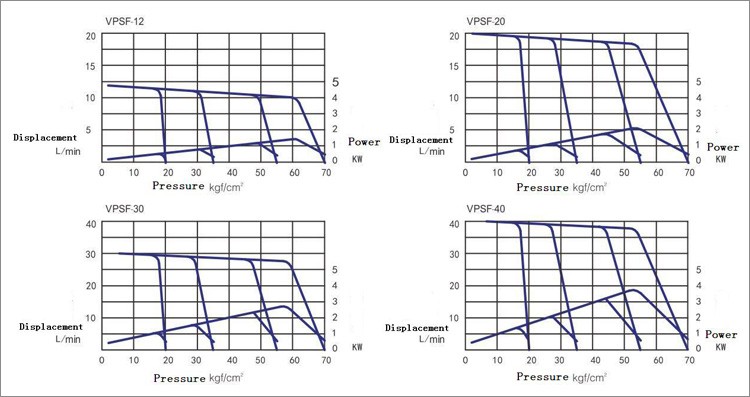

Performance curve:following databased on oil viscosity46 mm2/s(ISOVG-46 temperature 40oC)

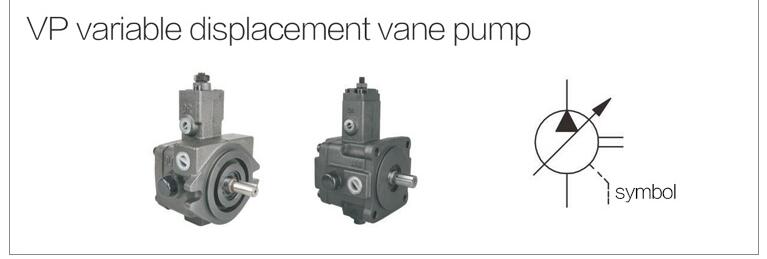

VP variable displacement vane pump

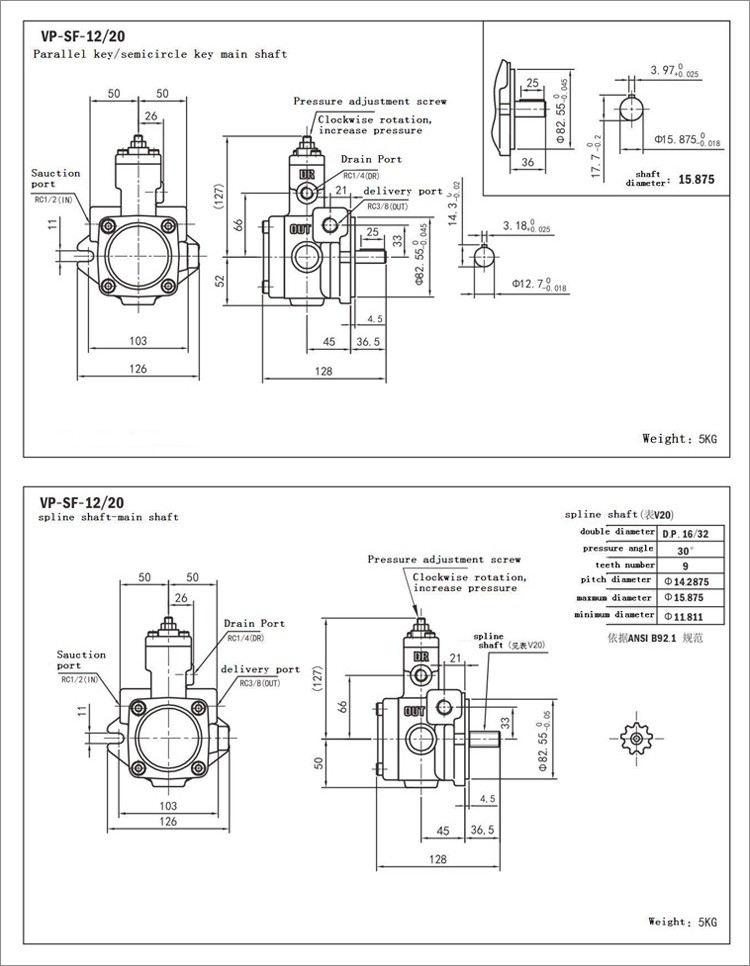

Installation drawing


Packaging & Shipping

Packaging:pack one pump in one plastic bag,then put it in one thick paper carton,thenheap up them on the plastic pallet, wrap the plastic pallet andcartons with plastic membrane then bind the cartons with plasticpacking belt.

Deliverydate:about 10-20 days after receipt your 30%T/T for deposit

Tradeterm: FOB SHENZHEN,or FCA or C&F or CIF


Shippingfor sample and bulk productions:

sendsample by international Express(Fedex or UPS or TNT or DHL),sample freight paidby collect.

Forbulk production, shipped as per customer's instruction,shipping process allfllow INCOTERM regulations.

Our Services

Warrantyperiod:  ONE YEAR



1,Withinone week after receipt of the goods, if customer use the products in correctmethod,and find any problem of performance or  construction with obviousevidence,we will be responsible for replacement or other discussing solutionbetween us.

2,Butif customer using method are not correct, or customer disassemble our productsprivately,we will not  responsible  for any problem or defectivepoints of products.

3,If you meet any questions of installation or debugging, please inquiry usanytime, our Engineer will provide technical support in time, or we will helpyou to resolve the technical failure through online video.

4,Any damage from transportion, we will slove the problem according to theresponsibility standard of INCOTERMS.
